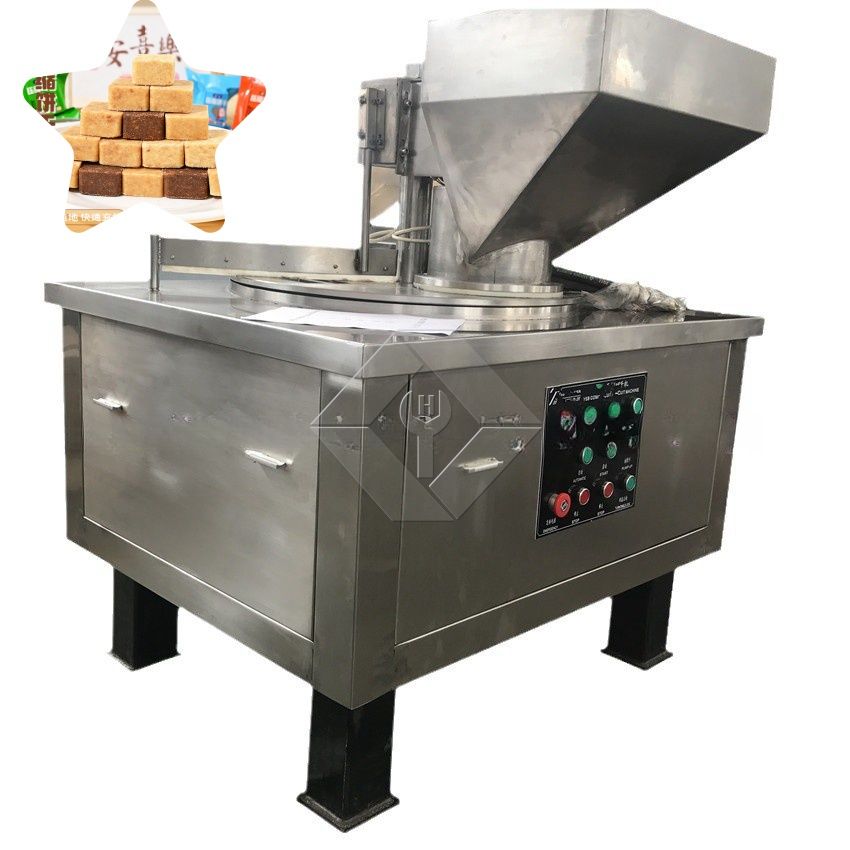

Automatic Industrial Compressed Biscuit Bar Machine

Inquire Now Next Product

Product Description

Machine feature

Companies with an innovative spirit in science and technology.

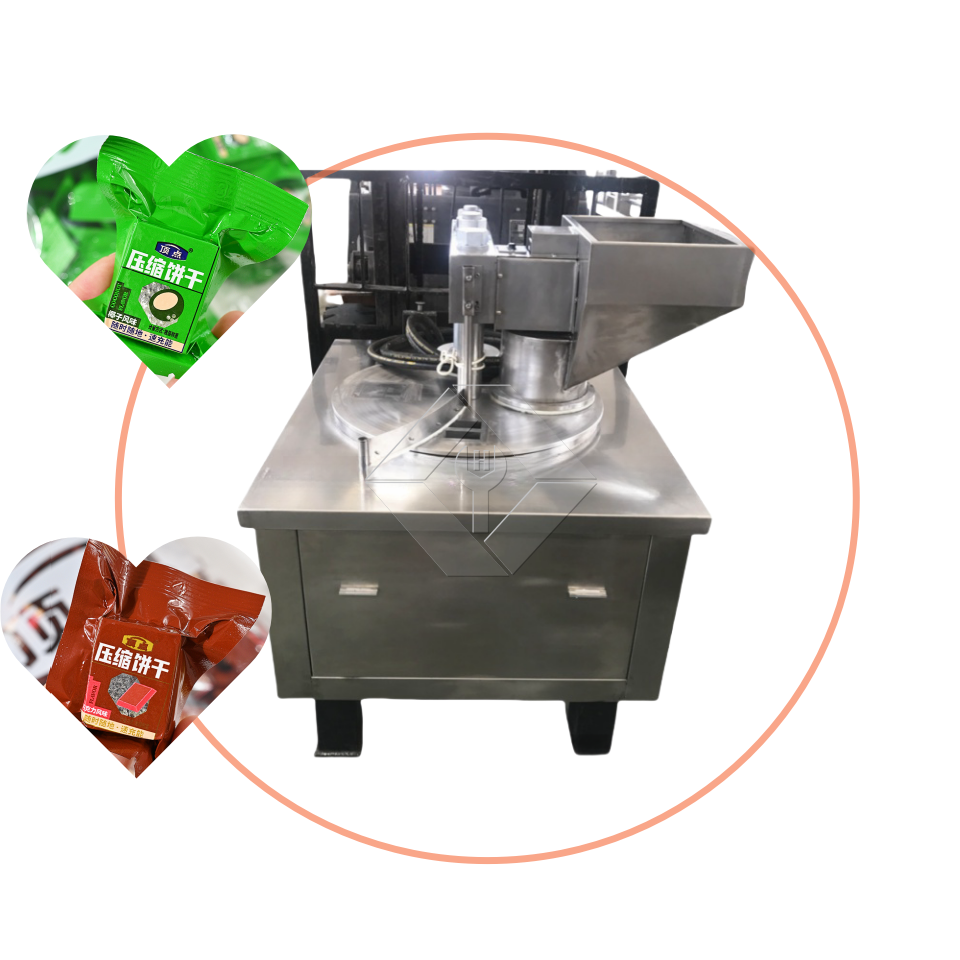

Biscuit compression machine is a high degree of automation of biscuit molding equipment,
using photoelectric tracking operating system, easy to operate and maintain. The shell and food contact parts are made of
stainless steel. Different from the crisp and tough cookie production line, the machine takes broken cookies as raw materials, and
uses other raw materials such as cooking oil to compress and form again, so there is no need to bake and vacuum packaging is
required.

Cleaning application scenarios

Application scenarios of handling

Short-distance transportation scenario

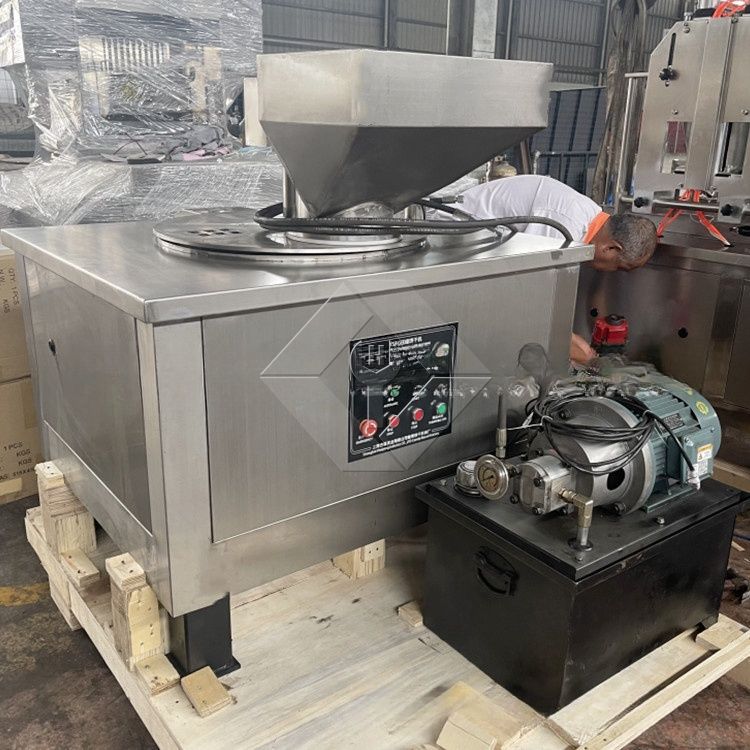

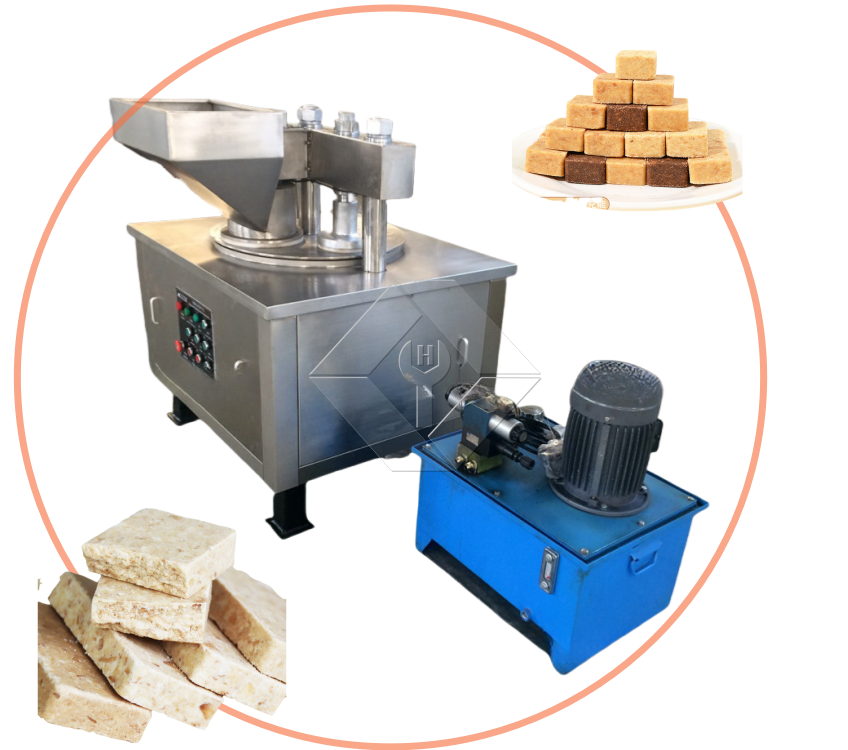

Machine overview

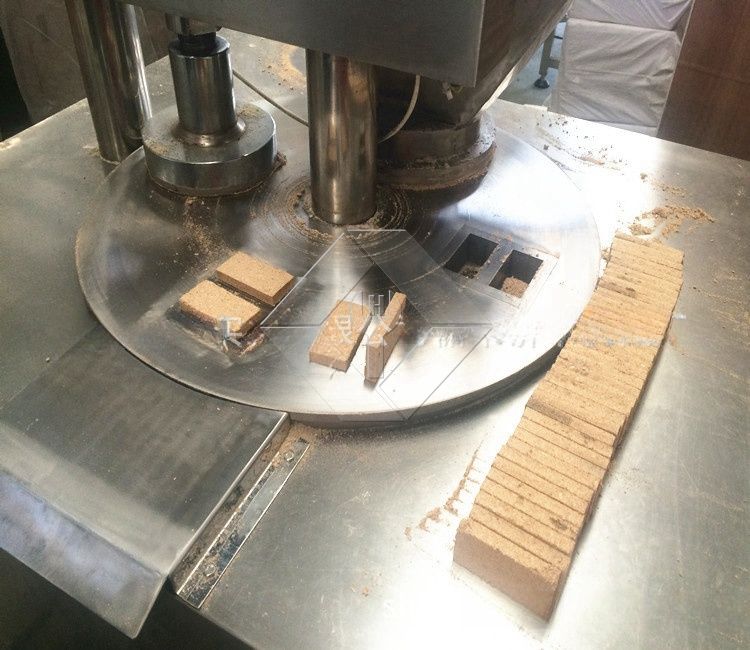

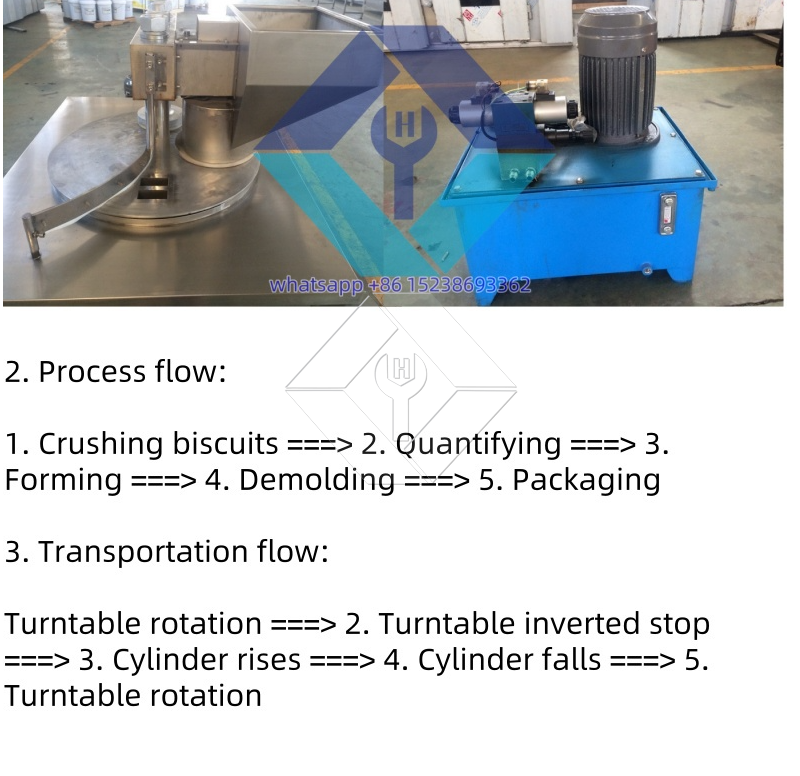

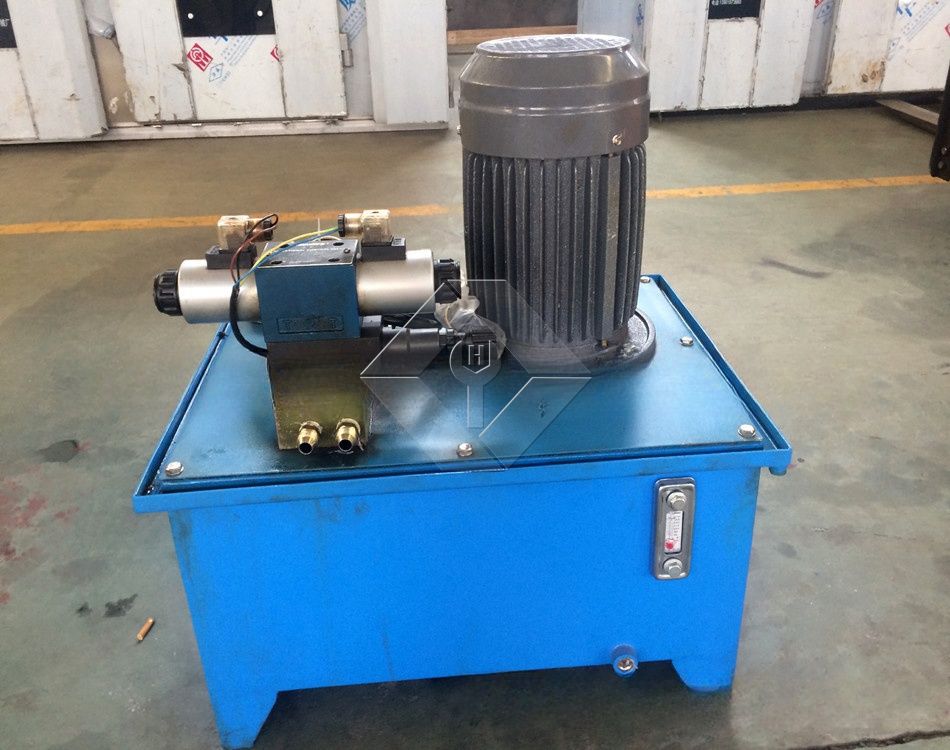

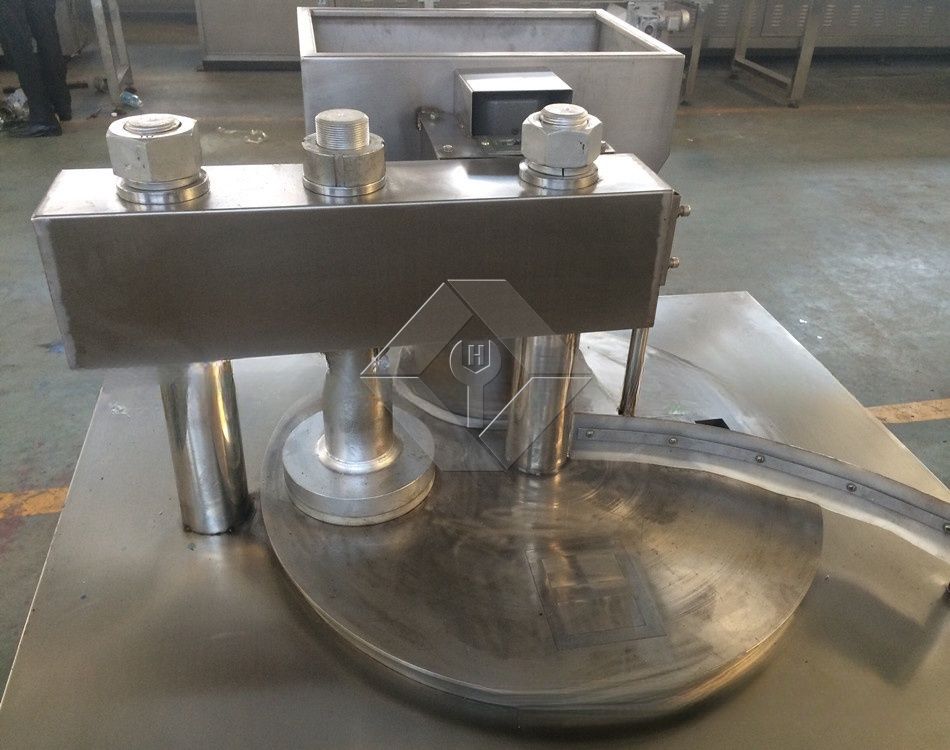

1. Compressed biscuit machine is a process for reprocessing biscuits after production. The biscuits need to be crushed and proportioned through materials. After mixing and stirring, the materials are transported to the compressed biscuit machine for automatic shaping, and then transported to the conveyor through an automatic biscuit pushing device. The line is carrying out automatic packaging and manual bagging and vacuum packaging. 2. The compressed biscuit forming machine uses an oil pump to lift the hydraulic slurry forming mold up and down. The biscuits are fed into the mold through a spiral stirrer and automatically formed through the compression mold. 3. The compressed biscuit mold can be customized according to user requirements. Conventional small cookie embryos are molded into 4 pieces at one time and weigh about 40 grams each, and large cookie embryos are molded into 2 pieces at one time and weigh 80 grams/piece.

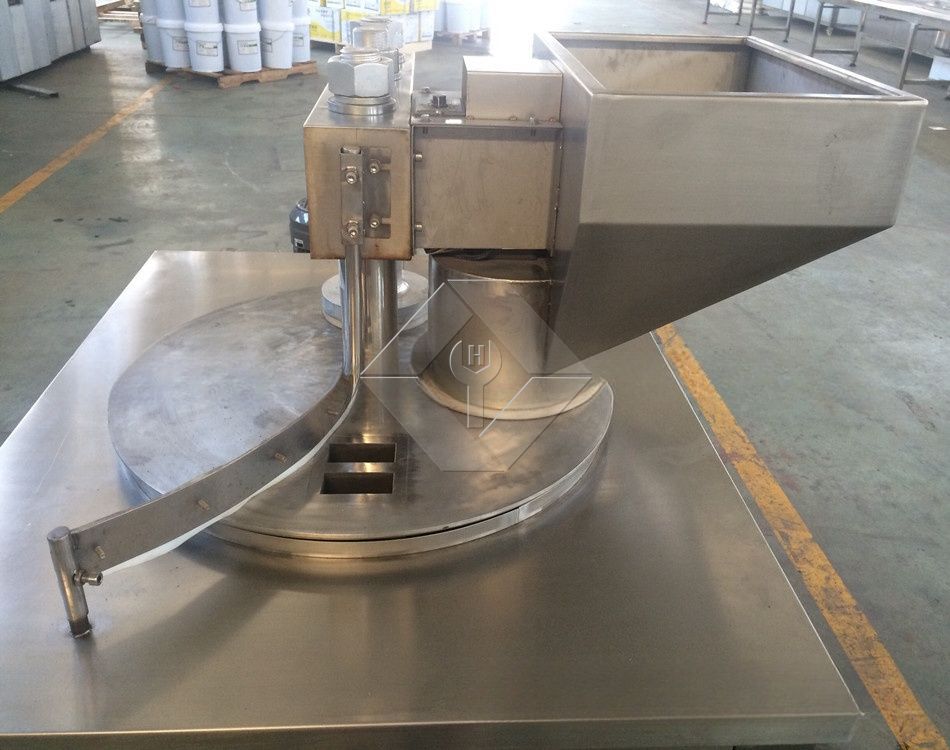

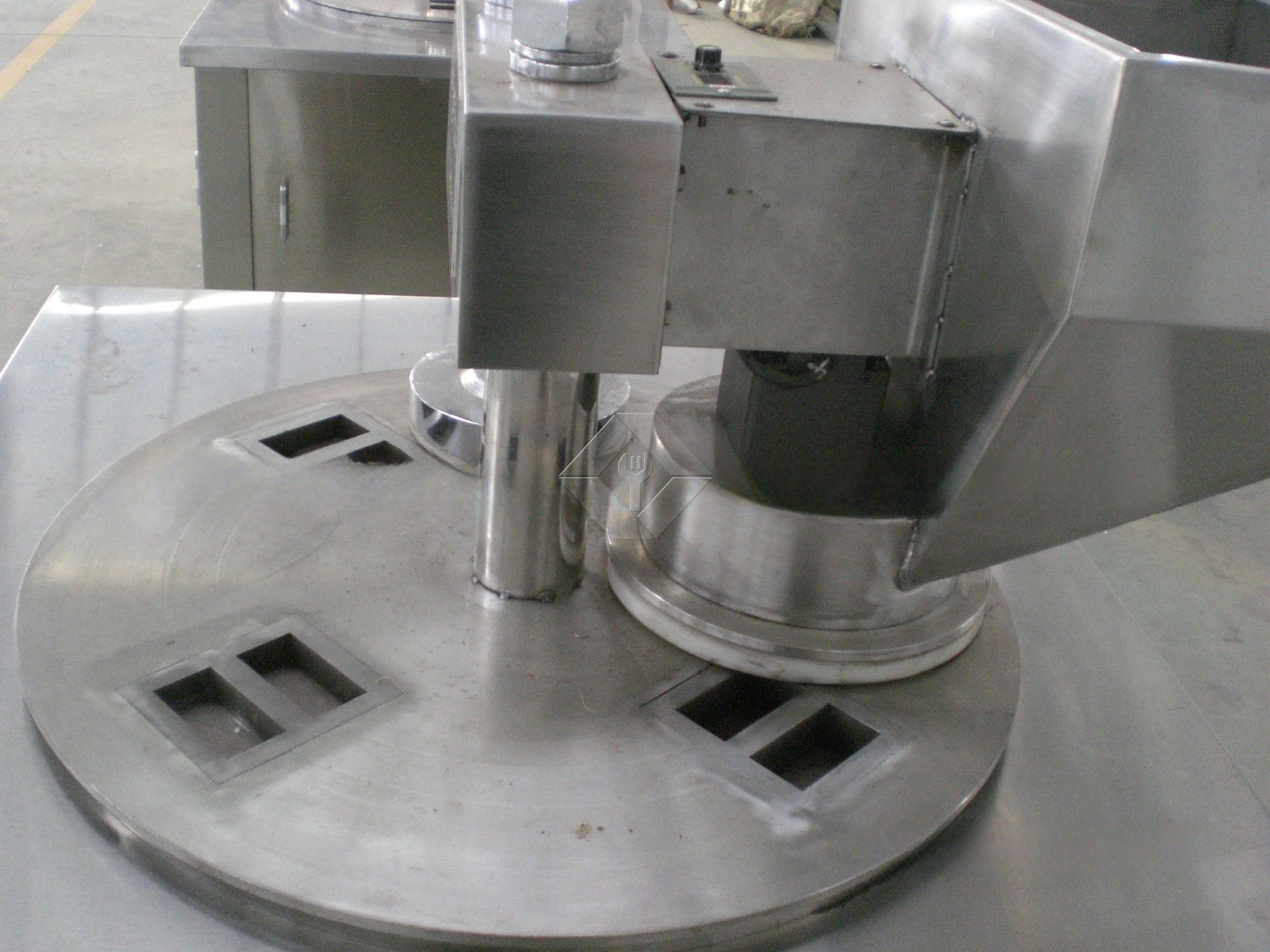

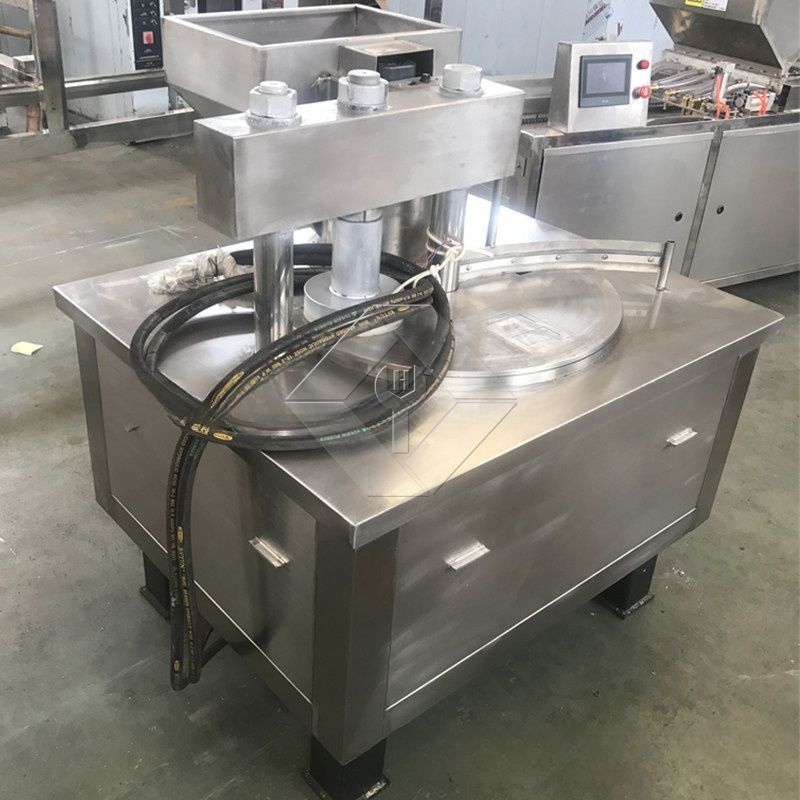

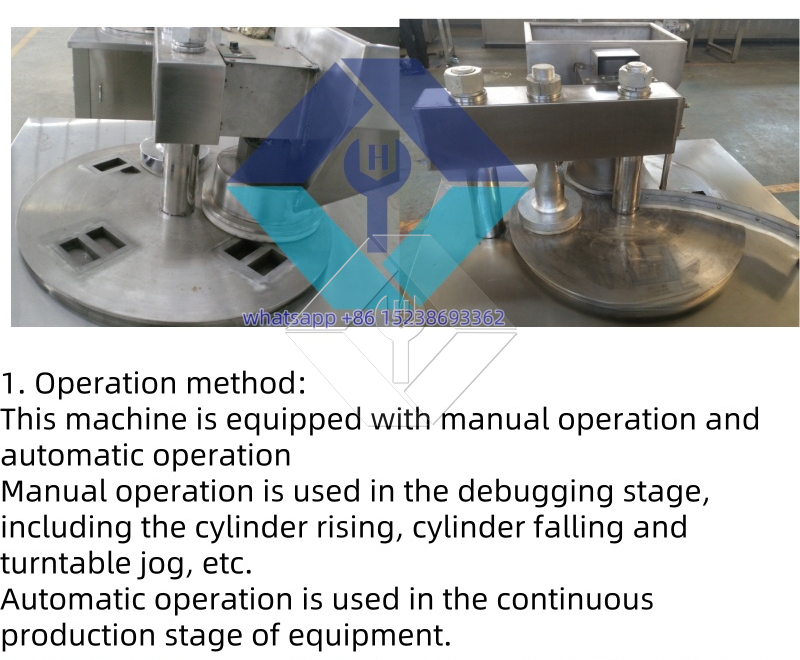

Machine details

Main features

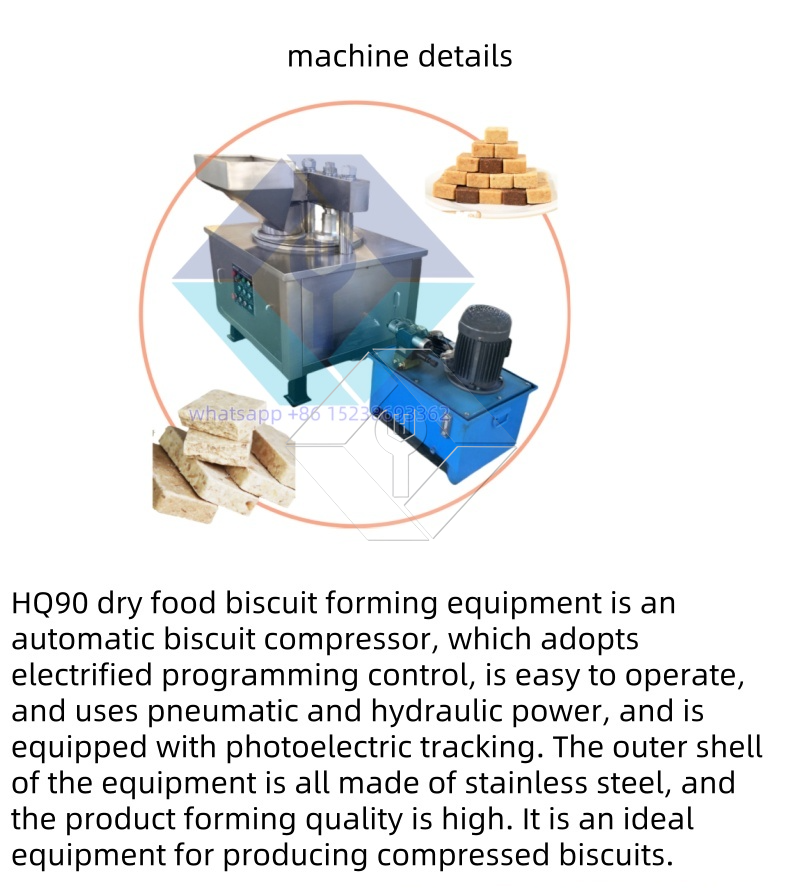

This equipment is an automatic biscuit compressor. It adopts electrified programming control and is easy to operate. It is powered by pneumatic and hydraulic pressure and is equipped with photoelectric tracking. The shell of this equipment is entirely made of stainless steel. The product has high quality and is an ideal equipment for producing compressed biscuits.

Machine specification

Model	YH-CBM-100
voltage	380V 50hz 3-phase
Power	4.5kw
Capacity	90-100kg/h
Oil pressure	15-25Mpa
Dimension	*9008001400mm*
Weight	900kg
