Jelly Gummy Candy Making Machine Automatic Hard Candy Stick Making Machine Lollipop Candy Production Line
This compact desktop gummy depositor machine is a professional and cost-effective solution for producing a variety of gummy confections, including bear jelly candy, chocolate gummy, and vitamin gummy. Designed for small-scale production scenarios such as home workshops, small food factories, and laboratory R&D, it combines automation, precision.
Product Description
Product Overview
Professional Candy Machinery Manufacturer
Our factory specializes in the manufacturing of two-color hard candy machines, lollipop pouring production lines, and fully automated candy processing equipment. With advanced technology and optimized workflows, our systems deliver high production efficiency, stable operation, and consistent product quality.
Wide Range of Candy Production Solutions
We focus on the production of two-color hard candy machines, lollipop production lines, hard candy production lines, pouring systems, toffee machines, and sandwich candy equipment.
The finished candies feature crystal-clear appearance, smooth surfaces, well-defined spray patterns, precise and stable filling volume and positioning, and excellent taste consistency.
Food-Grade Standards & Global Recognition
Our complete production lines are manufactured strictly in accordance with international food machinery standards and fully comply with food hygiene and safety requirements. This makes the equipment reliable, easy to clean, and helps food manufacturers successfully pass food safety certifications, earning strong recognition from both domestic and overseas customers.
Core Configuration & Specifications
|
Model |
150 |
300 |
450 |
600 |
|
|
Production capacity |
150kg/h |
300kg/h |
450kg/h |
600kg/h |
|
|
Weight of each candy |
Max.21g |
Max.21g |
Max.21g |
Max.21g |
|
|
Depositing times |
25n/min |
25n/min |
25n/min |
25n/min |
|
|
Steam |
Consumption |
300kg/h |
600kg/h |
1000kg/h |
1500kg/h |
|
|
Pressure |
0.5-0.8mpa |
0.5-0.8mpa |
0.5-0.8mpa |
0.5-0.8mpa |
|
Compressed air |
Consumption |
0.2m³/min |
0.25m³/min |
0.3m³/min |
0.5m³/min |
|
|
Pressure |
0.4-0.6mpa |
0.4-0.6mpa |
0.4-0.6mpa |
0.4-0.6mpa |
|
Environmental requirements |
emperature |
20~25℃ |
20~25℃ |
20~25℃ |
20~25℃ |
|
|
Humidity |
55% |
55% |
55% |
55% |
|
Total electric power |
18kw/380V |
25kw/380V |
40kw/380V |
50kw/380V |
|
|
Length of production line |
16m |
20m |
22m |
22m |
|
Key Features
Application

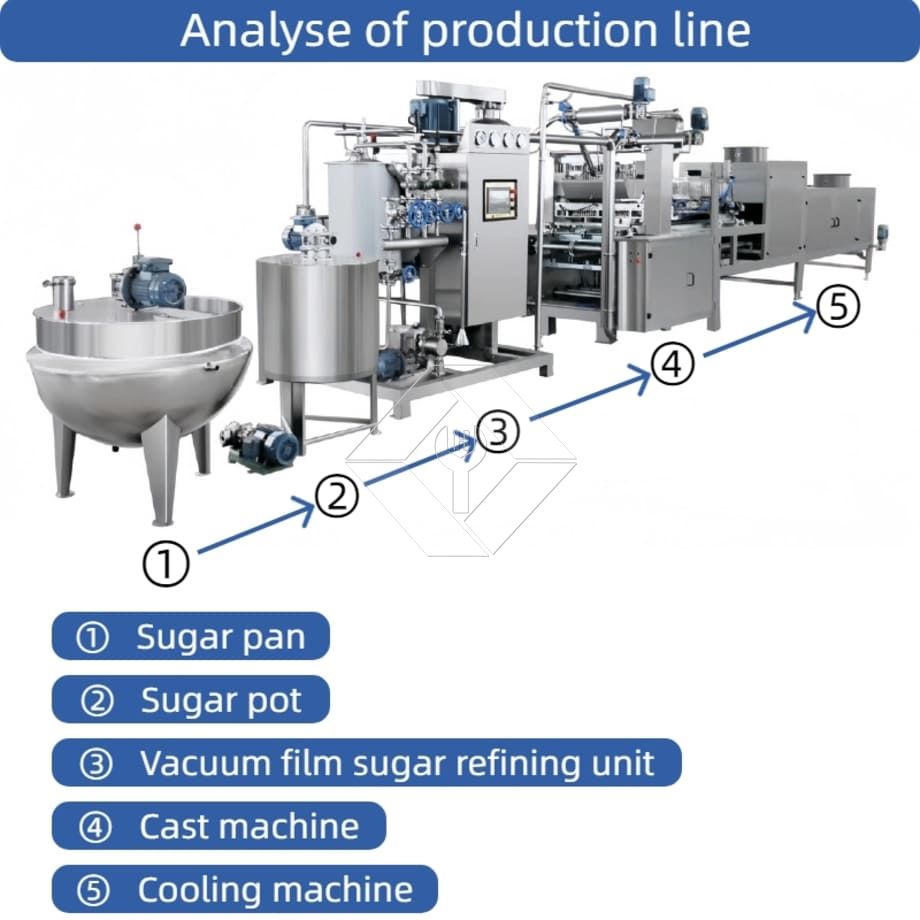

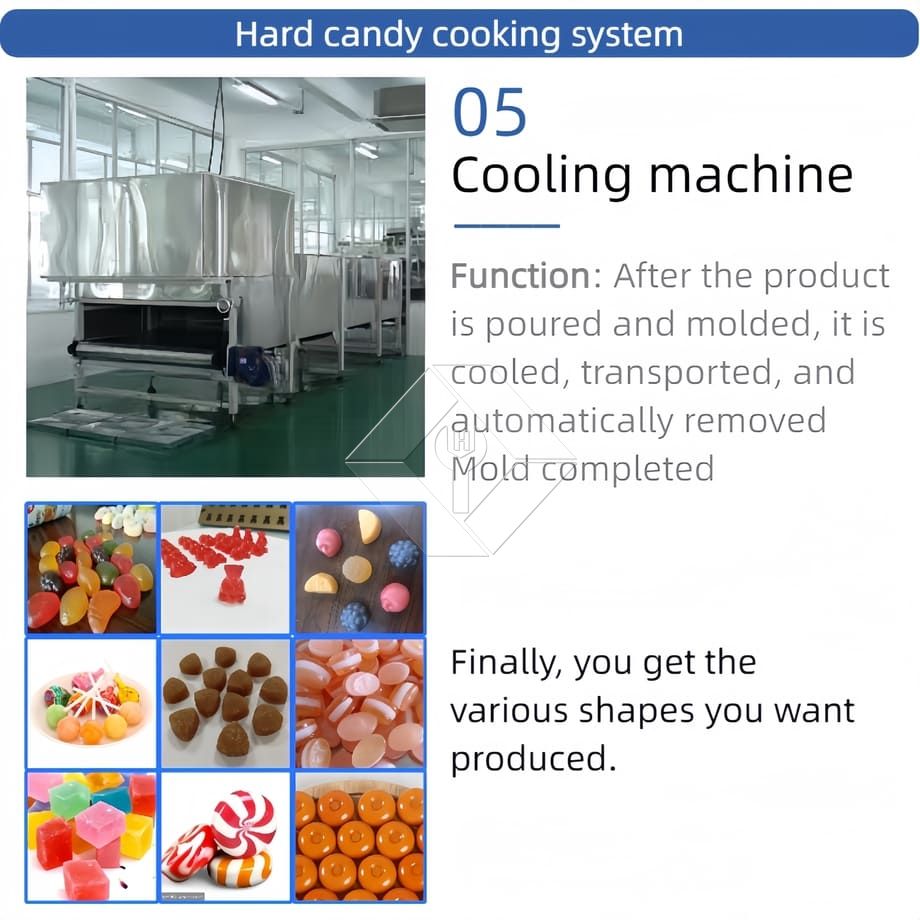

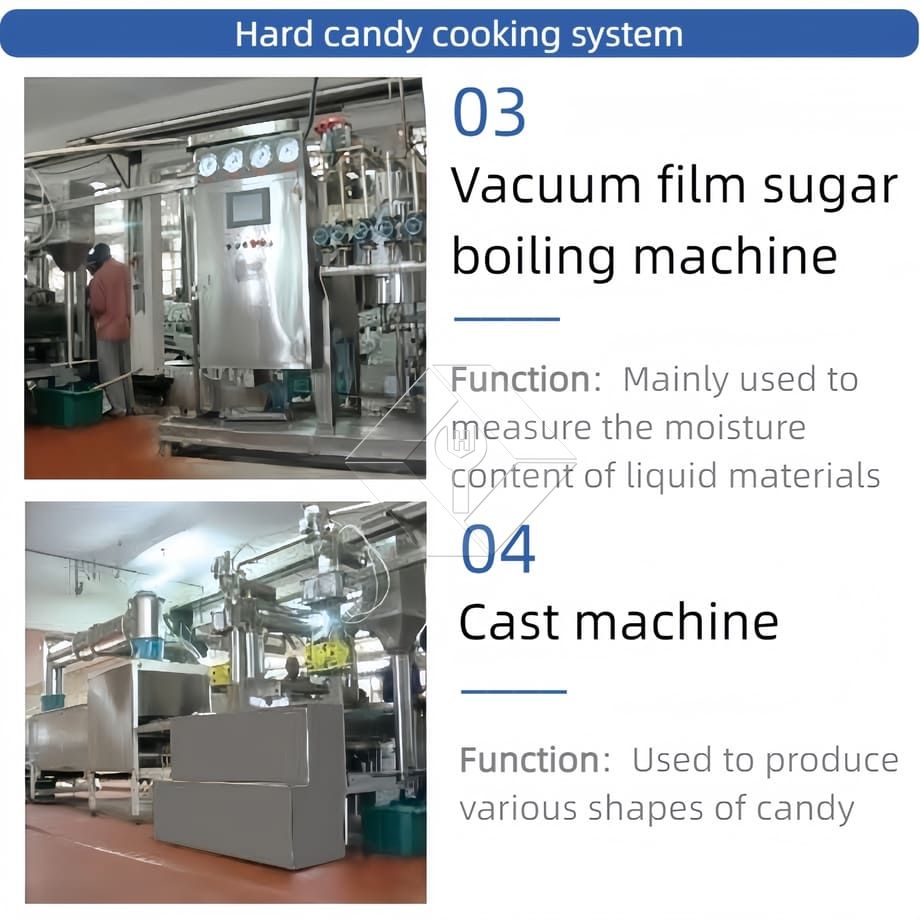

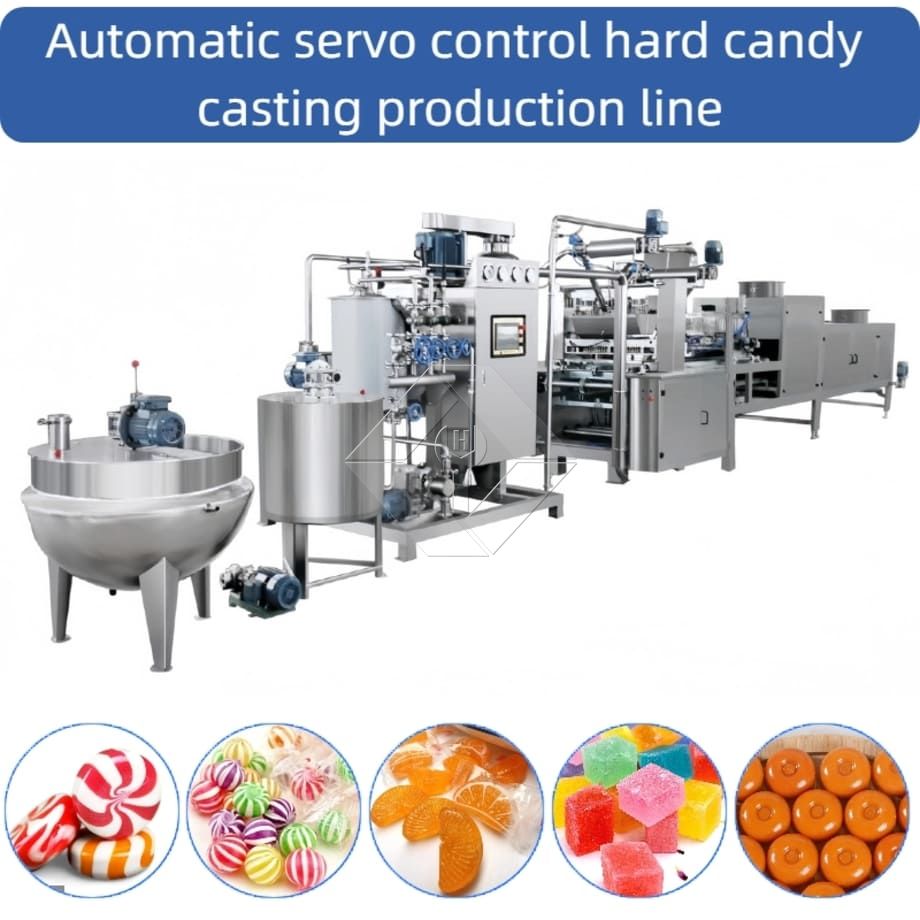

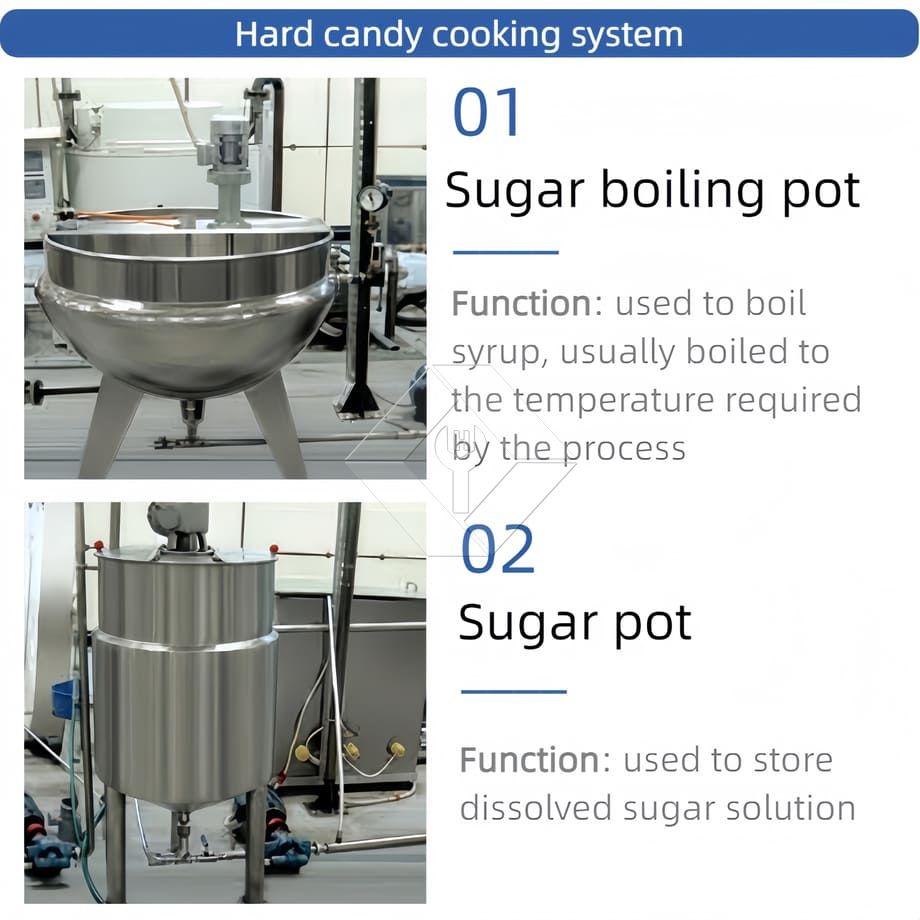

This automatic lollipop production line integrates a sugar cooker, sugar storage tank, vacuum film sugar cooker, pouring machine, molds, cooling cabinet, and auxiliary units into a complete and continuous system.
It is specially designed for producing a wide range of cast hard candies, including single-color lollipops, two-color spray lollipops, two-color double-layer lollipops, and sandwich lollipops with filling.

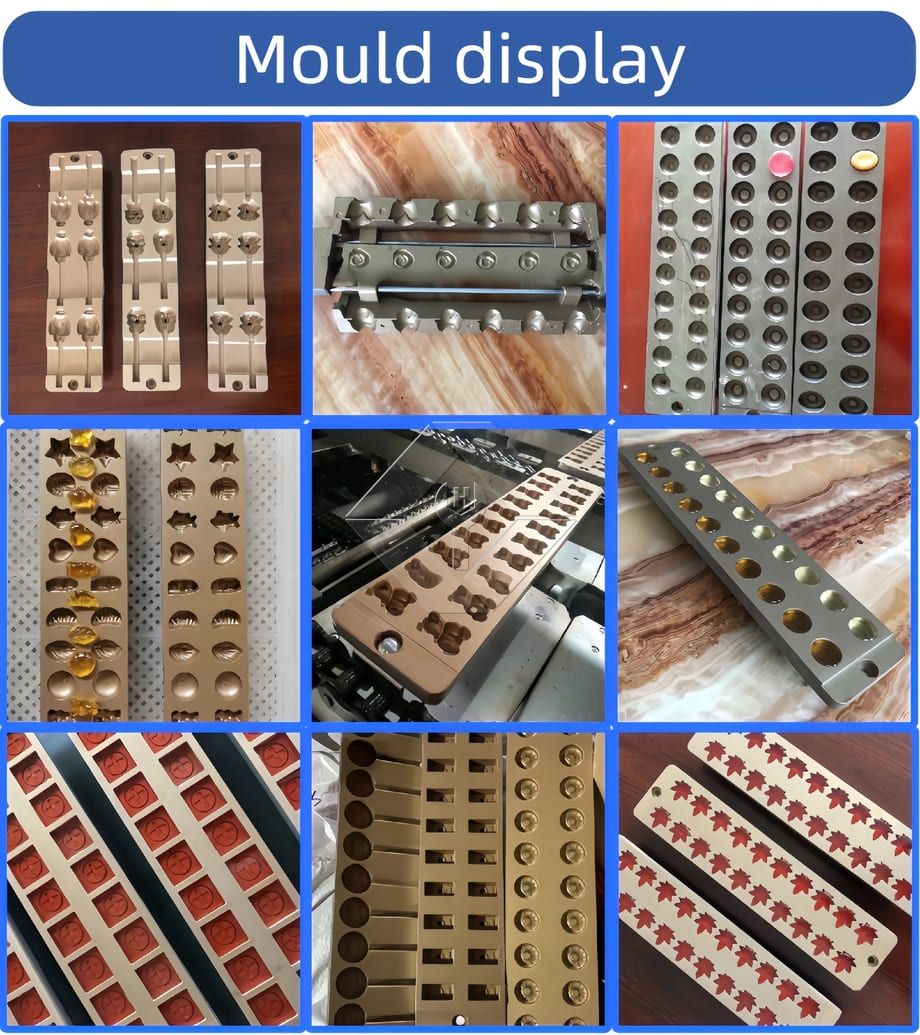

By simply changing molds, customers can flexibly manufacture lollipops in different shapes, sizes, weights, and patterns, meeting diverse market demands. The line is suitable for medium to large-scale candy factories aiming for stable output, consistent quality, and product diversification.
Advantages
PLC Intelligent Control System
The entire production line is controlled by a PLC system, ensuring precise coordination of vacuum sugar transfer, cooking, and pouring processes. This guarantees stable operation, accurate timing, and repeatable product quality.
Accurate Online Ingredient Dosing
The system supports quantitative online filling of liquid flavors, colors, and acids, enabling consistent taste, color uniformity, and formula accuracy while reducing raw material waste.
Automatic & Stable Stick Insertion
Equipped with a high-precision automatic stick insertion device, the machine ensures correct positioning, firm bonding, and reliable performance at high production speeds.
Hygienic & Compact Design
The whole line adopts food-grade hygienic design standards, with stainless steel contact parts, compact layout, and smooth surfaces for easy cleaning and maintenance.
Reliable Performance & High Efficiency
With optimized structure and mature technology, the production line delivers continuous operation, low failure rate, and high productivity, making it ideal for long-term industrial use.
Our company also manufactures a wide range of food machinery, including automatic hard/soft biscuit production lines, automatic hard candy/soft candy depositing lines, automatic chocolate/enrobing lines, various cookie machines, hot-air rotary ovens, tunnel ovens, cake forming machines, moon-cake production equipment, and egg roll production lines.
We offer non-standard customization according to customer product requirements. Please visit our website and feel free to contact us for inquiries and orders!
