Automatic Fruit Vegetable Washing Drying Grading Line (300-3000kg/h Capacity)
The commercial fruit and vegetable washing drying grading line is mainly used to automate the processing of large quantities of fruits and vegetables. After a complete processing process in less than 10 minutes, the fruits and vegetables can be sold directly from the farm to the supermarket.
Product Description
The commercial fruit and vegetable washing drying grading line is mainly used to automate the processing of large quantities of fruits and vegetables. After a complete processing process in less than 10 minutes, the fruits and vegetables can be sold directly from the farm to the supermarket.
The fruit and vegetable washing and grading line can handle all kinds of fruits and vegetables, effectively deal with impurities, sort out bad fruits, and automatically grade and package them for processing. The processing capacity of automatic fruit and vegetable washing and drying and grading line is generally between 500kg/h and 5000kg/h. Our factory can customize cost-effective processing plants according to the specific needs and raw materials of our customers.
Why Choose Vegetable Washing Drying Grading Lines?
Large Market Demand for Clean Vegetables
Nowadays, fruit and vegetable supermarkets, large canteens, and food processing plants have a strong demand for clean vegetables. In response to this market trend, many fruit and vegetable farms have abandoned the traditional model of directly selling freshly harvested produce to the market. Instead, they use professional fruit and vegetable processing equipment to turn fresh fruits and vegetables into clean, neatly packaged clean vegetables. This processing method not only significantly increases the added value of fruit and vegetable products but also makes them more popular among downstream buyers and end consumers.
High Processing Efficiency and Lower Cost
Compared with relying on a large number of manual workers for fruit and vegetable processing, investing in a complete set of fruit and vegetable washing, drying, grading, and packaging lines offers obvious advantages: it significantly boosts processing efficiency while substantially reducing labor costs.
Fruit & Vegetable Washing Drying Grading Line Details

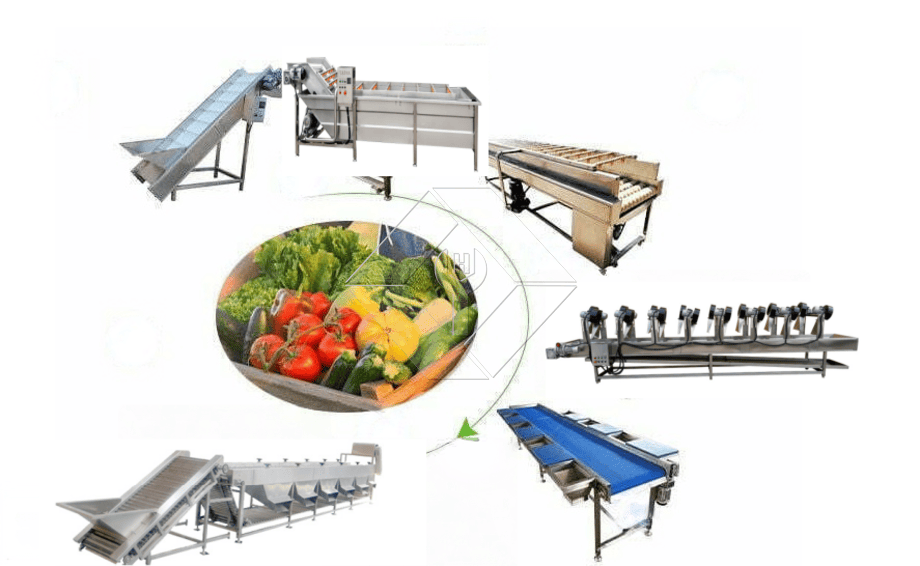

Our fruit and vegetable processing line features a versatile design, widely applicable to food processing plants, fruit and vegetable supermarkets, restaurants, and other venues for processing various types of fruits and vegetables. The core equipment of this production line includes an automatic lifting machine, bubble washing machine, impurity removal machine, air dryer, picking table, automatic fruit and vegetable grading machine, and clean vegetable packaging machine.
Steps For Processing Clean Vegetables and Fruits
Lifting the Raw Materials
First, feed the fruits or vegetables to be cleaned into the automatic elevator sequentially. The elevator will transport them to the bubble washer at a steady, uniform speed, and its conveying speed can be flexibly adjusted based on specific processing requirements.

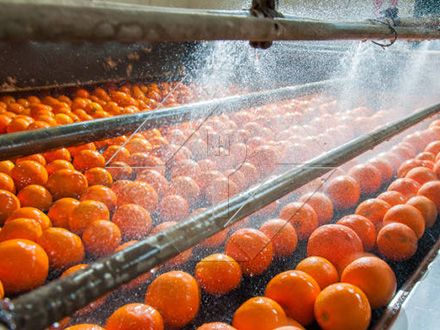

Vegetable & fruit Washing
The vortex generator installed at the bottom of the bubble washer’s cleaning tank creates a large number of dense bubbles in the water, enabling rapid and thorough cleaning of fruits and vegetables. Additionally, a surfing device is equipped at the end of the washer, which continuously drives the materials to tumble forward during the cleaning process—ensuring no damage to the raw produce while achieving all-around cleaning.
Impurities Removing
After the initial cleaning by the bubble washer, the fruits and vegetables are transferred to an impurity removal machine for deep purification. Equipped with multiple food-grade hair rollers, this machine effectively scrubs off stubborn impurities—such as fine hairs, residual sand, and small stones—that are hard to remove during bubble cleaning.
Air drying
The air dryer is equipped with multiple sets of high-power fans, which blow out strong, uniform airflow to quickly blow off surface water droplets from fruits and vegetables. After efficient air drying, the produce is ready for subsequent processes such as grading or packaging—ensuring no excess moisture affects product freshness or packaging quality.
Clean Fruits & Vegetable Grading
The automatic grader enables precise classification of cleaned fruits and vegetables based on multiple grading dimensions—including weight, diameter, and size. After grading, customers can sort and label produce of different specifications for targeted sales, meeting diverse market demands. Notably, the grading levels and criteria of the machine can be fully customized according to specific customer requirements.
Fast packaging
Customers can also select our fruit and vegetable packaging machine to package the graded produce as needed. The machine supports multiple packaging formats, including vacuum packaging, boxed packaging, bagged packaging, and heat shrink film packaging, to meet different storage and sales requirements.
Classification of Fruit and Vegetable Grading Machine
As a professional and reliable food machinery manufacturer and supplier, we offer a diverse range of fruit and vegetable grading equipment for customers to choose from. Our factory’s core grading machines mainly fall into two categories: diameter-based grading machines and weight-based grading machines.
Vegetable & Fruit Grading By Diameter

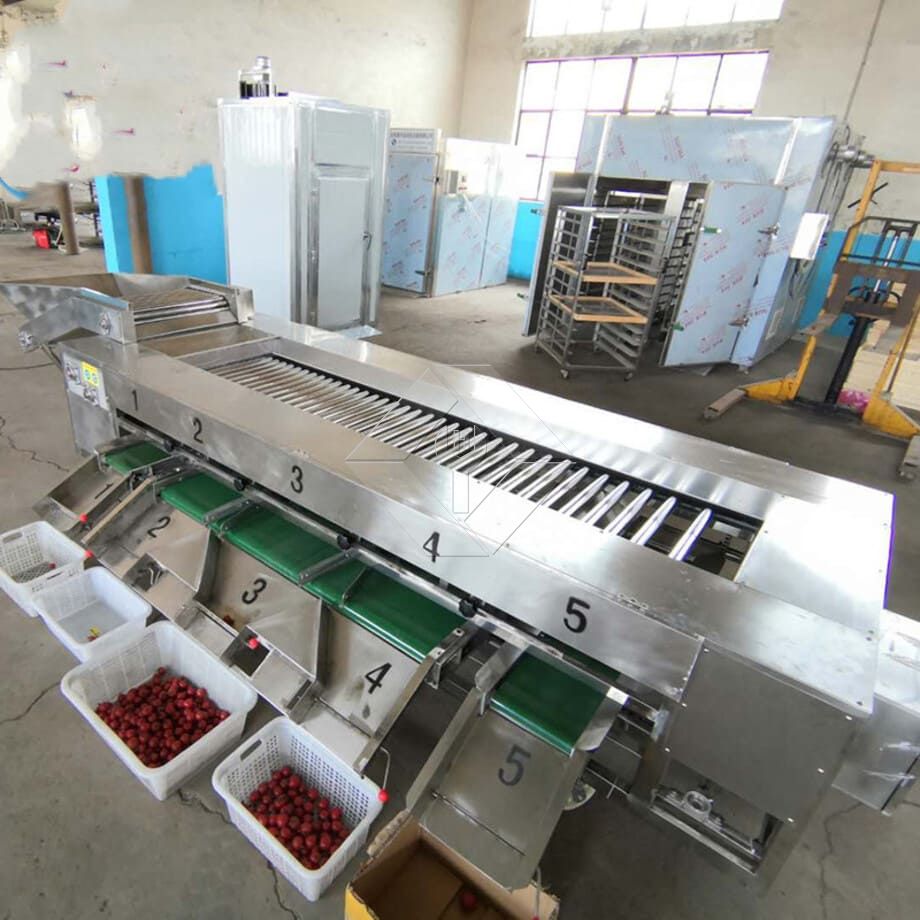

Type 1

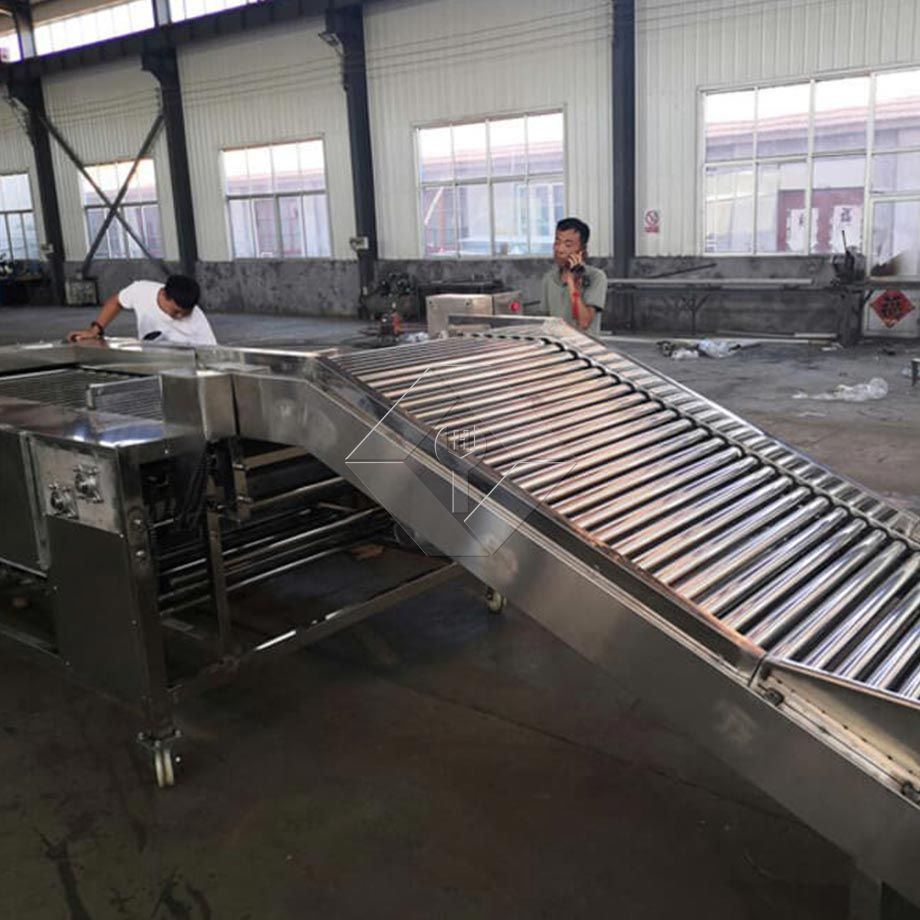

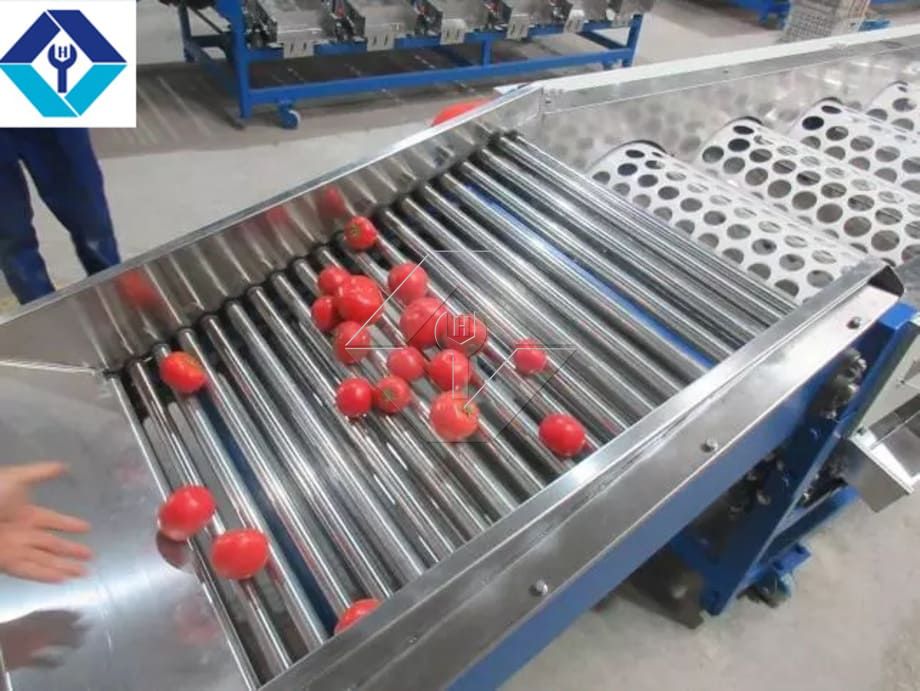

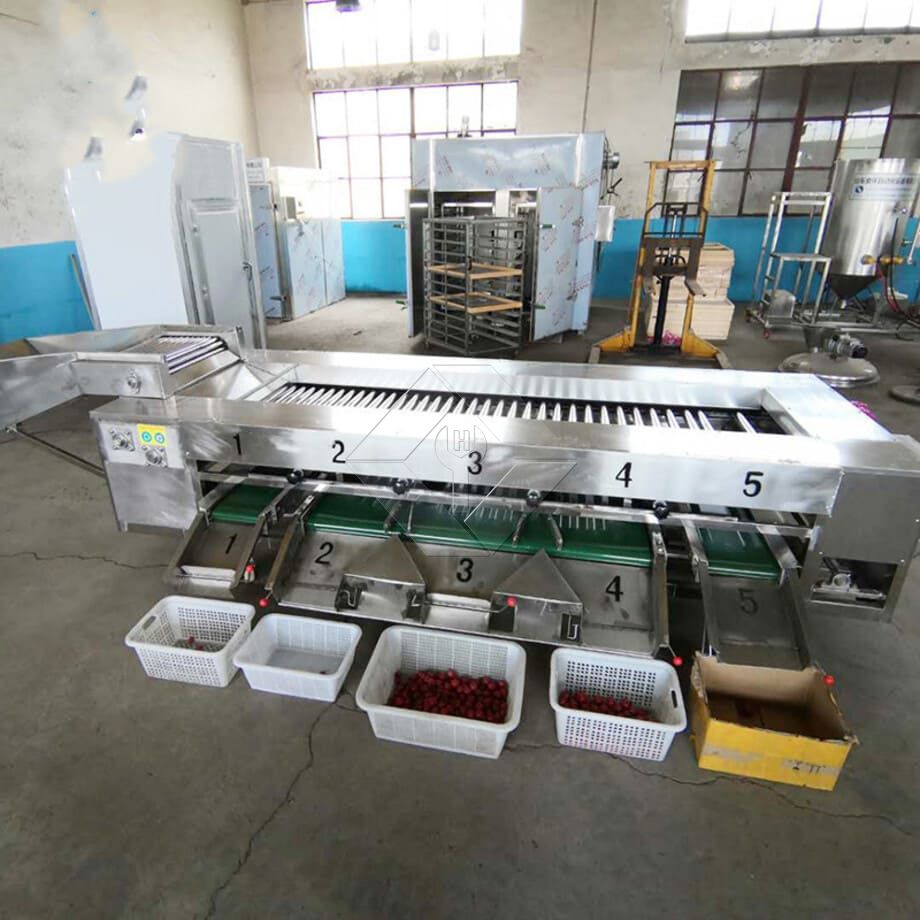

The roller-type fruit and vegetable grader is specifically designed for sizing bulbous and round produce, such as potatoes, taro, sweet potatoes, tomatoes, apples, onions, and pomegranates. Its grading quantity is customizable based on customer needs, typically ranging from 4 to 7 grades. During operation, the rollers form adjustable gaps; as fruits and vegetables move along the rollers, they automatically fall into the corresponding discharge outlets when they align with the gap matching their diameter—achieving precise, efficient classification..

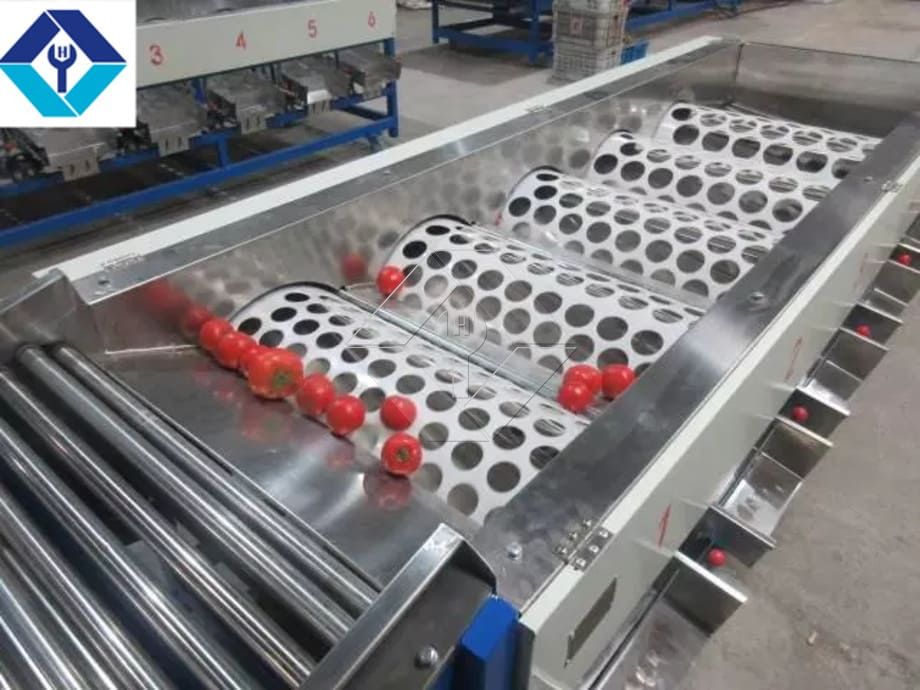

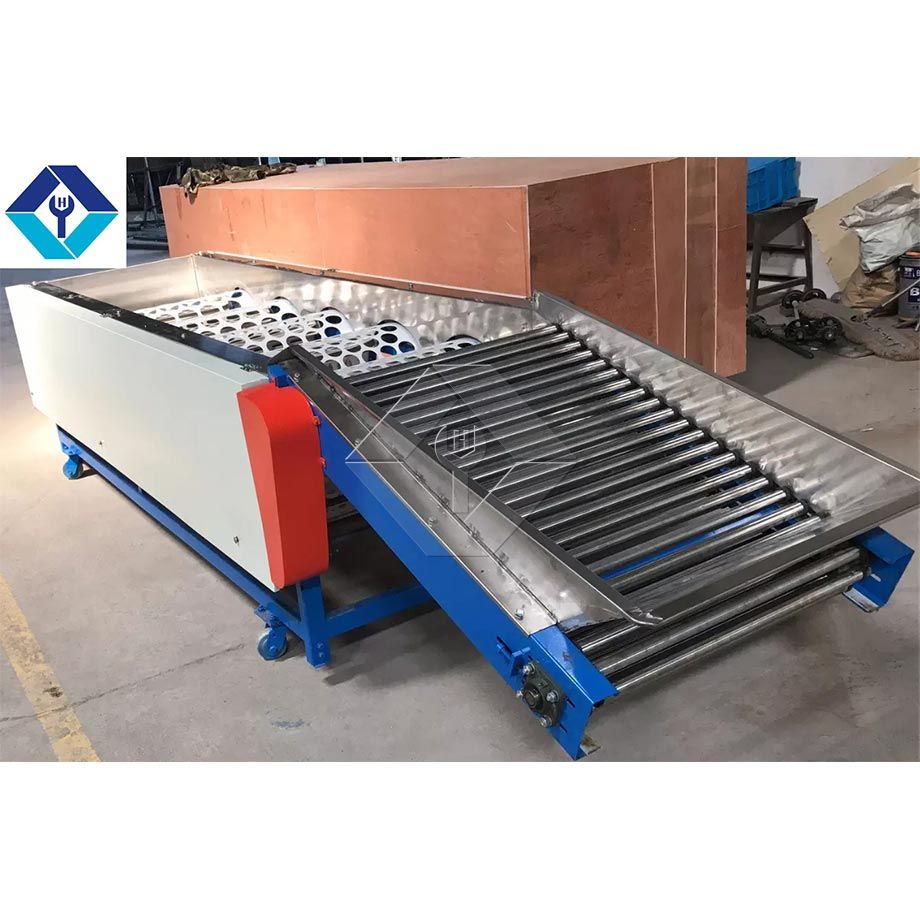

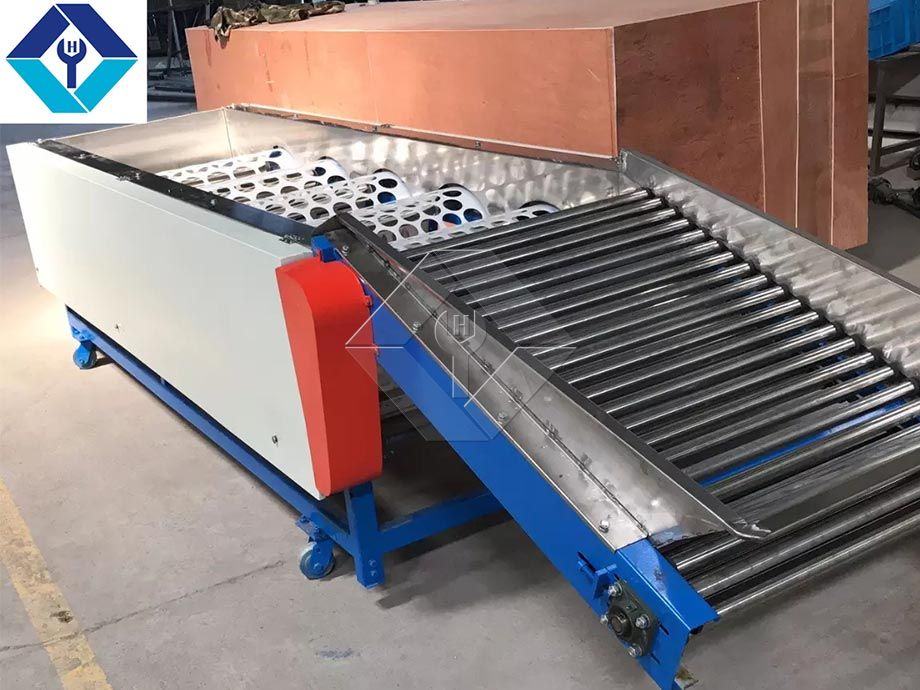

Type 2

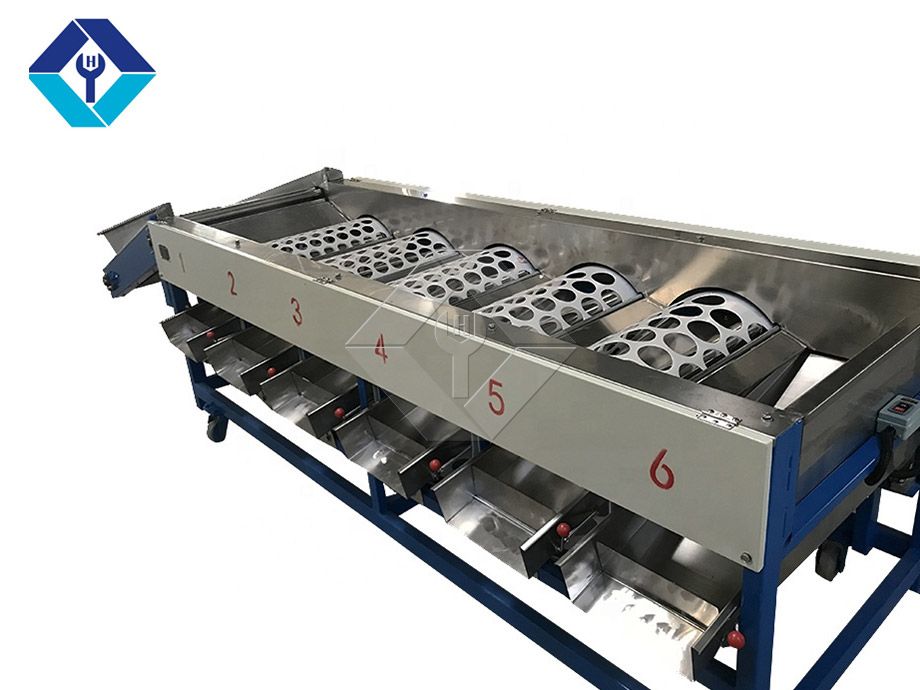

This new-type fruit and vegetable grader also classifies produce by diameter, and is particularly suitable for grading various fruits such as oranges, blueberries, plums, cherry tomatoes, kiwis, hawthorns, and jujubes. Its grading cylinder is made of food-grade PE plastic, with customizable aperture diameters to match different fruit sizes. The automatic grading levels typically range from 4 to 9 grades, meeting diverse sorting needs.

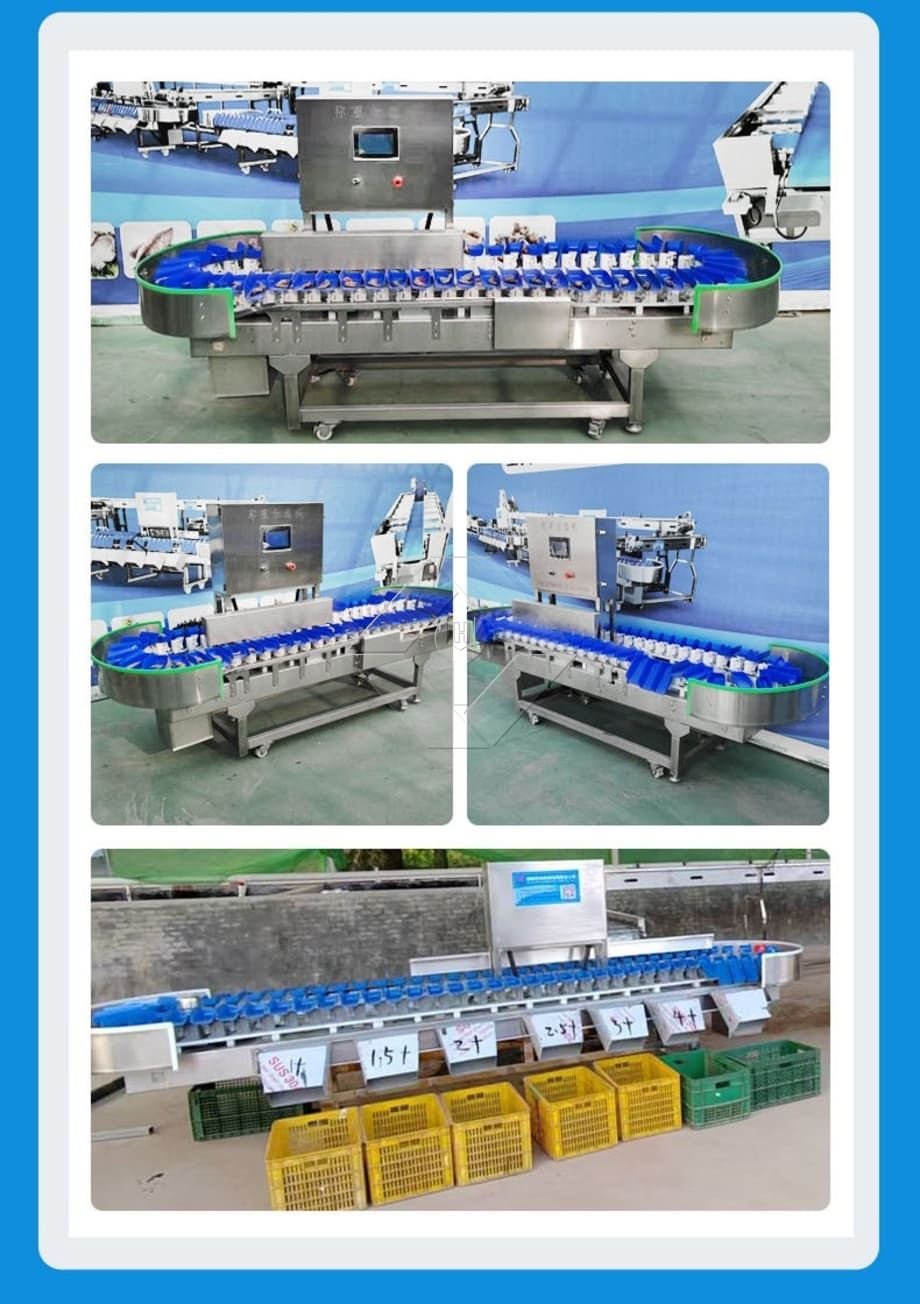

Vegetable & Fruit Grading By Weight

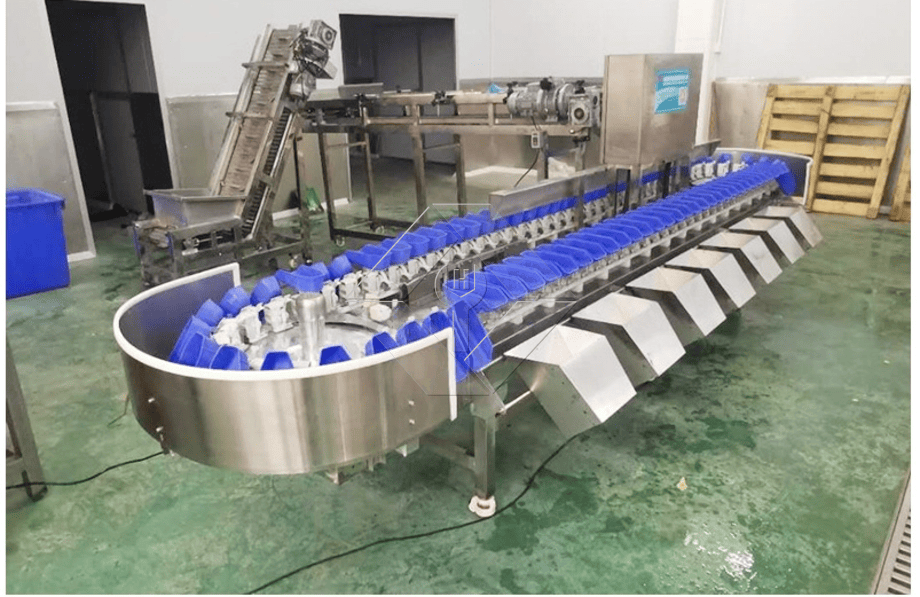

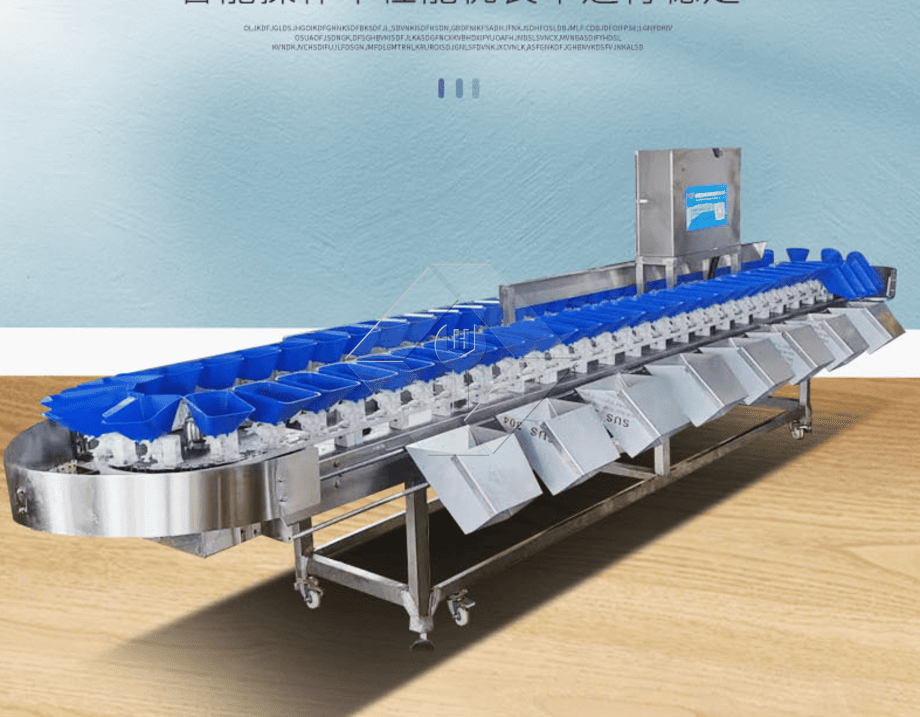

This continuous fruit and vegetable sorting machine adopts weight-based grading, designed for industrial-scale production with high grading efficiency. It is widely applicable to weight sorting of various fruits and vegetables, and is usually used in conjunction with an automatic fruit feeding machine for seamless workflow. Equipped with a precise automatic weighing system, the machine achieves accurate weight-based classification of fruits and vegetables, ensuring consistent product specifications for downstream sales or processing.
Recommended Machine for Fruit and Vegetable Washing Drying Grading Line
Clean Vegetable Packing Machine
This continuous packaging machine is designed for bagging or boxing clean vegetables, with fully customizable package size and weight to meet customers’ specific requirements.

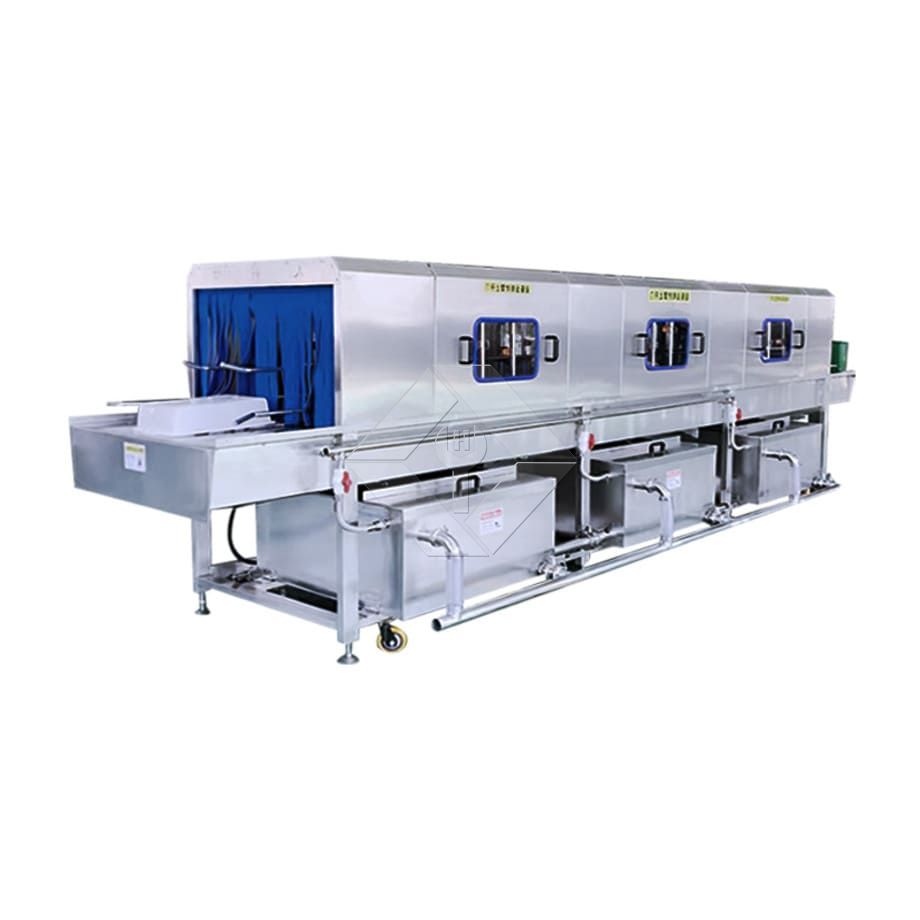

Plastic Baskets Cleaning Machine
This industrial plastic basket washing machine is engineered to replace manual labor, enabling rapid cleaning and high-temperature sterilization of various plastic baskets used in fruit and vegetable processing plants.
Applications of Vegetable Processing Plant

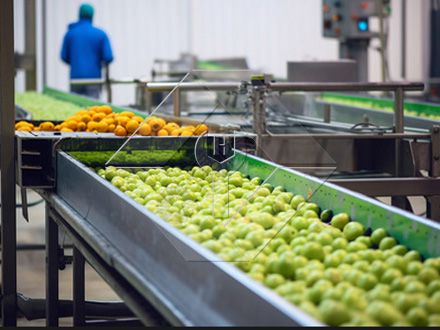

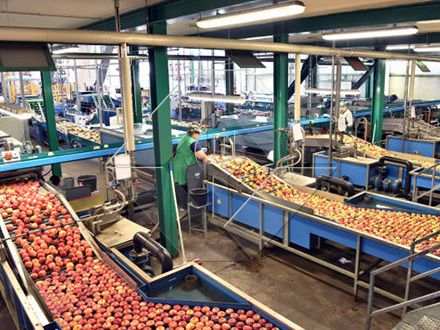

Complete sets of fruit and vegetable processing equipment are now widely applied across diverse fields, including frozen vegetable processors, chain supermarket suppliers, and fruit and vegetable manor growers. To date, our fruit and vegetable washing and grading lines have been exported to numerous countries and regions worldwide, such as Egypt, Canada, Turkey, the United Kingdom, Italy, France, the United States, Qatar, Greece, Indonesia, Saudi Arabia, and Australia.
3-5t/h Tomato and Zucchini washing drying grading line shipped to Turkey
3-5t/h Tomato & Zucchini Washing, Drying, Grading & Packaging Line Shipped to Spanish
YANH Factory has recently exported a complete 3-5 tons per hour fruit and vegetable processing line to Turkey. The customer, who owns a large-scale fruit and vegetable plantation, purchased this integrated line primarily for processing tomatoes, zucchini, potatoes, onions, eggplants, cucumbers, and bell peppers. It covers the entire processing workflow: washing, drying, grading, and packaging.
Parameters of Vegetable Processing Plant for Turkey
|
Item |
Parameter |
Unit |
|
1. Conveyor |
Model: YH-1500 |
1 set |
|
2. Bubble washer machine |
Model: YH-8000 |
2 sets |
|
3. Hair roller remover |
Model: YH-2000 |
1 set |
|
4. Air cooling machine |
Model: YH-3000 |
1 set |
|
5. Picking conveyor |
Model: YH-2500 |
1 set |
|
6.Bilateral sorting machine |
Model: YH-250 |
3 sets |
|
7. Sorter machine |
Model: YH-800 |
3 set |
|
8. Basket washing machine |
Model: YH-300 |
1 set |
|
9. Pillow packing machine |
Model: YH-250 |
|
